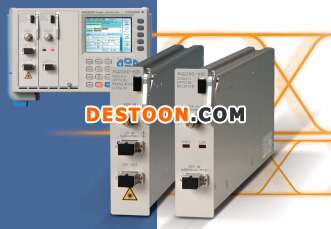

特价现货YOKOGAWA AQ2201 帧控制器

  YOKOGAWA AQ2201 帧控制器Item Specification RemarksStorage temperature -10°C to 50°C, 80% relative humidity or less, with no condensationOperating temperature 5°C to 40°C, 80% relative humidity or less, with no condensationWavelength range AQ2200-621: 1530-1570 nm Note 1AQ2200-622: 1290-1330 nmWavelength stability Depends on specifications of AQ2200-111 DFB-LD moduleOptical power stability Depends on specifications of AQ2200-111 DFB-LD moduleLN crystal cut specification X-cut (The Z-cut option is a factory-installed option.) Note 1Optical insertion loss 7 dB typical, 10 dB max Note 2Maximum optical input 16 dBmPerformance-guaranteed optical input range 9-13 dBm Notes 3 and 5Extinction ratio AQ2200-621: 12 dB or higher at 1550 nm Notes 3, 4, and 6AQ2200-622: 12 dB or higher at 1310 nmTr/Tf (20-80%) 25 ps or less Notes 3 and 4Electric input amplitude 500 mVpp ± 100 mVpp (AC coupling) Note 3Absolute maximum input amplitude 1200 mVpp (AC coupling)Electric connector 3.5 mm (jack) equivalentOptical connector (LD IN) SC/PC fixedOptical connector (OPT OUT) SC/PC standard (The FC/PC option is a factory-installed option.) Note 1Optical fiber PMF is used inside the module. (The slow axis and key direction are matched.)PMF or SMF can be connected to the module.SpecificationsAQ2200-621/AQ2200-622Note 1: Select one or the other (select when placing order).Note 2: Modulation loss due to NRZ code (50% mark rate) is included.Note 3: Use the AQ2200-601 BERT module optical modulator DATA OUT output and AQ2200-111 DFB-LD module (option PMF). For connections between modules, use the specified Ulink (optional) and PMF (optional). For the waveform observation trigger, use the AQ2200-601 10GHz CLOCK OUT. For optical waveform observation, use SMF with a length ofone meter or less.Note 4: The performance-guaranteed temperature range is 23°C ±5°C.Note 5: This specifies the range in which Auto-Bias Control is stable.Note 6: These specifications are for the performance-guaranteed optical input range.(The specifications are for NRZ and PRBS31 (50% mark ratio) code unless otherwise specified8163a,8164a,81618a,81619a,81624b,81623a,81623b,81625a,81521b,81533b,81525a,8156a,81576a,81570a,81578a, n7744a,,86100A,86100C,86105A,86103A,83493A,83492A,83494A,81610A,81632B,81636BN5980A,86130A,86120B,86120C,86107A,86105C,86116CKEITHLEY ,2400,2420,6517b,2602a, 2612TEK DSA8200 80E04 80C08-CR4,80C02Anritsu 9710BYOKOGAWA 2201,2200-42186100C 安捷伦 Agilent 86100C 宽带示波器主机Tektronix DSA820086105C 安捷伦 Agilent 86105C 9 GHz光采样模块安捷伦 Agilent N9020A 信号分析仪R&S CMW500 无线通信综合测试仪keithley2400型通用性源表Keysight 是德3458A 数字多用表8156A 安捷伦 Agilent 8156A 光学衰减器81576A 安捷伦 Agilent 81576A 可变光衰减器模块81570A 安捷伦Agilent 81570A 可变光衰减器模块86100A 安捷伦 Agilent 86100A宽带示波器86105A 安捷伦 Agilent 86105A 模块86105D 安捷伦Agilent 86105D 模块Agilent 81578A-0628164A 安捷伦 Agilent 8164A 光波测量系统Keysight 是德N7744A 多端口光功率计Agilent 83494A-UK6yokogawa AQ6370D 光谱分析仪81642B安捷伦 Agilent 81642B 可调激光源Agilent 66319D 电源keithley6517B 型静电计/高阻表安捷伦 Agilent E5071C ENA 网络分析仪keithley2420型高压源表Anritsu MS9710BYOKOGAWA AQ2201 帧控制器Tektronix DPO5000 示波器Q8384Advantest  Q8384 光谱分析仪Agilent 8753ES S-参数矢量网络分析仪Anritsu MT8852B 蓝牙综合测试仪YOKOGAWA AQ2201 帧控制器Agilent 4339B 高电阻表3920IFR 3920 测试仪安捷伦 Agilent N5230C 系列微波网络分析仪N5230CFLUKE福禄克 5500A 多功能校准器8163A 安捷伦 Agilent 8163A 光波万用表系统81618A 安捷伦 Agilent 81618A接口模块81619A 安捷伦 Agilent 81619A 接口模块81624B 安捷伦 Agilent 81624B 通用光功率探头81623A 安捷伦 Agilent 81623A 探头81623b 安捷伦agilent 81623b光功率探头模块81625A 安捷伦 Agilent 81625A 探头大功率 81521B  安捷伦 Agilent HP 81521B 光功率探头 81533B安捷伦 Agilent 81533B光探头接口模块81525A 安捷伦 Agilent 81525A 大功率 InGaAs 光学探头86103A安捷伦 Agilent 86103A 光电模块83493A 光时钟恢复模块83492A 多模时钟恢复插入式模块81610A安捷伦 Agilent 81610A回损测试模块81632B安捷伦 Agilent 81632B光功率传感器81636B 安捷伦 Agilent 81636B 光功率传感器Keysight 是德N5980A 用于光电器件生产线的3125 Gbs生产用串行比特误码率测试仪BERT86130A安捷伦 Agilent 86130A 误码分析仪86120B安捷伦 Agilent 86120B波长计 86120C 安捷伦
